Gamma High Voltage Research

MODEL GUIDE

MODEL

OUTPUT VOLTAGE

OUTPUT CURRENT

RC5-3

0 to 3KV

1.5mA

RC5-5

0 to 5KV

1mA

RC5-10

0 to 10KV

500μA

RC5-15

0 to 15KV

330μA

RC5-20

0 to 20KV

250μA

RC5-25

0 to 25KV

200μA

RC5-30

0 to 30KV

160μA



RC10-3

0 to 3KV

3.3mA

RC10-5

0 to 5KV

2mA

RC10-10

0 to 10KV

1mA

RC10-15

0 to 15KV

660μA

RC10-20

0 to 20KV

500μA

RC10-25

0 to 25KV

400μA

RC10-30

0 to 30KV

333μA

All units are available in Positive or Negative Polarity. Add P or N as suffix to Model number to indicate polarity desired.

series RC small03

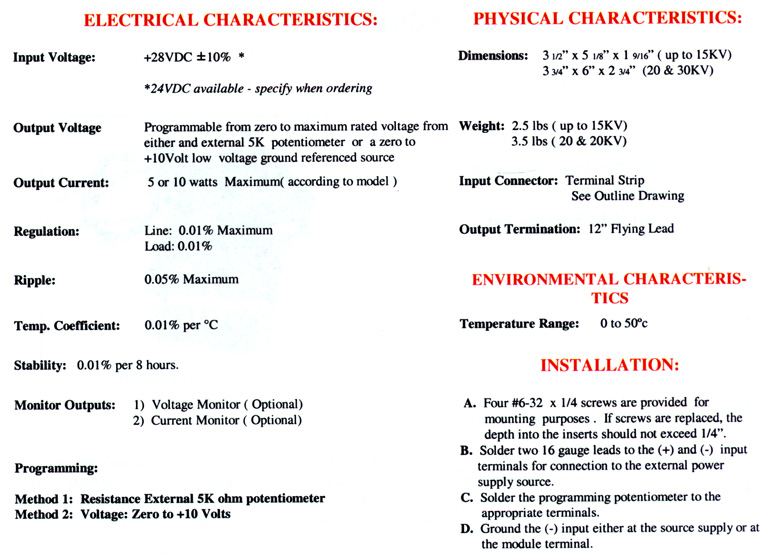

series RC spec small

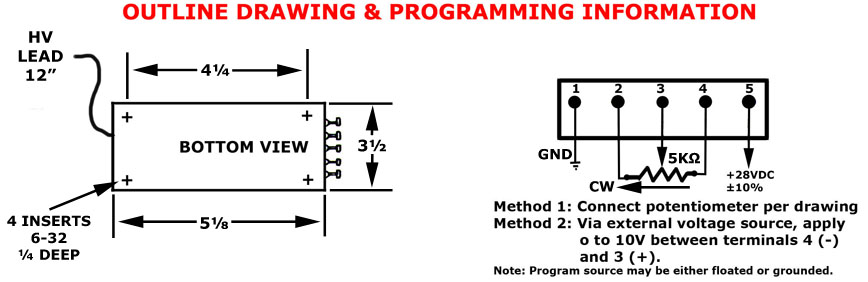

series RC outline dwg small
